PS Foam Sheet Extrusion Line
Material: PS
Products: Foam sheet, profiles
Gas injection: Butane pump
Density: 45-100 kg/M3
Type: Tandem 65/90; 100/120; 120/150 mm
Screw L/D: 32:1 and 34:1
Cooling: by wind or water
Weight: 10-18MT
Delivery time: 45days
Product Description: This PS foam sheet extrusion machine produce PS foam sheet, which is a kind
of new-type packing with the features of shock proofing, sound insulating, heat preservation, damp
proof, safety, and good plasticity. It is used widely in the packing of food, fruit, electronic product,
daily necessities, hardware product, advertisement plate, etc.
THE MAIN TECHNICAL SPECIFICATIONS:
Model | FS-FPP75/90 | FS-FPP105/120 | FS-FPP120/150 | FS-FPP135/150 |
Extruder | 75/90 | 105/120 | 20/150 | 135/150 |
Foaming Rate | 20-30 | 20-30 | 20-30 | 20-30 |
Width of product(mm) | 660 | 660-1180 | 660-1180 | 660-1180 |
Cutting Mode | Single or double cutter | |||
Thickness of product(mm) | 1.0-2.0 | 1.0-3.5 | 2.0-5.0 | 2.0-6.0 |
Cooling method | Air or water cooled | |||
Output | 60-90 | 150-220 | 250-320 | 300-350 |
Installed Capacity(kw) | 120 | 200 | 300 | 350 |
Dimensions(L*W*H)(mm) | 26000*4000*2800 | 30000*4100*2800 | 38000*4200*3200 | 40000*4200*3200 |
Total Weight(T) | 10 | 12 | 18 | 20 |
Mechanical arm type automatic vacuum forming, cutting and stacking machine
Material: PS
Model:FS-YTA110-140
Max forming area: 1100*1400mm
Max forming depth: 130mm
Forming mode: Vacuum forming, press forming, mould forming, comprehensive forming
Forming pressure: 40t (adjustable)
Production efficiency: 18-22 cycles/min
The control mode:Color touch screen
Total power:200kw
Weight:About18t
Product introduction:
This machine developed by combining the domestic and foreign equipment and advantages, is a set of hydraulic pneumatic servo drive for an automatic forming cutting stacking machine. The main electrical components, such as vacuum pump,PLC,made in Japan and Germany, ensure the reliability of the equipment operation, and can be used for hot forming process many kinds of plastic material, it can produce PS,PVC,PE,PP,PET,HIPS etc all kinds of packaging products, materials used in food, medical supplies, electrical components, tourism products, toys, textile, etc.
Advantage:

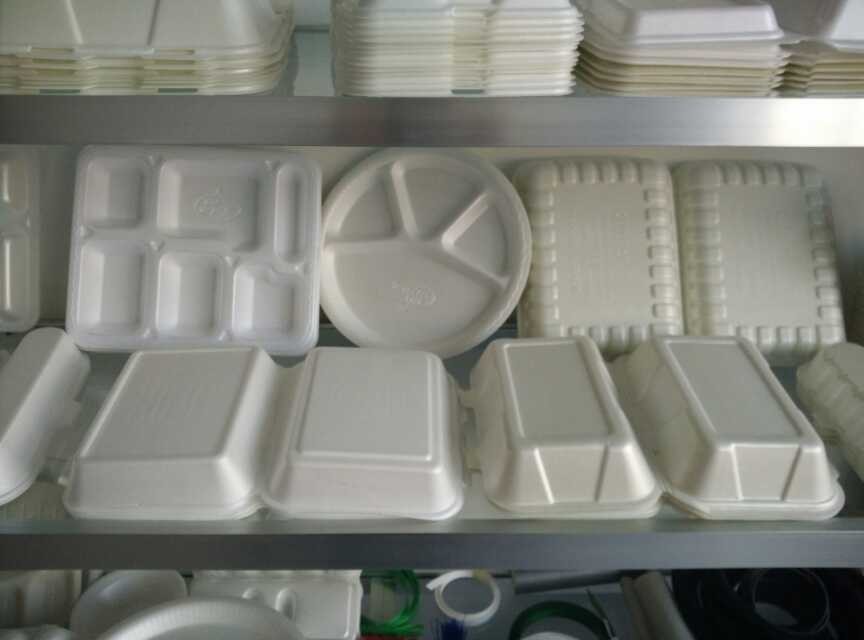

1. Suck and pull the food containers up. Even the containers don't be sucked out successfully, this won't affect next move.
2. There are one conveyor belt on each side, both can achieve automatically stacking, reduce labor intensity.
3. Heater box separate into three parts, hydraulic cutting speed is faster, and use mechanical arms to suck products, all above methods reduce the whole working time.
4. Extend mold length, making the forming mold area larger and improving the production efficiency.
5. Stacking system installed two sets of static eliminator to eliminate static electricity generated in the
PS crushing and granulating machine
Material: PS scrap
Product: Granules
Screw Diameter: 120/220mm
Total power: 45KW
Throughput: 120kg/h
Weight: 1.5MT
Delivery time: 25days
Product description: This crushing and granulating machine is designed to reclaim the foamed polystyrene almost identically to new ones with its own superior filtering performance.
Item No. | Screw Diameter | Throughput |
FS-HS120/220 | 120/220mm | 120kg/H |
