PS Foam Disposable Lunch Box Food Box Vacuum Forming Machine MT105/120
MELITE MACHINERY is Professional in producing Packing Machinery for more than 15 years.With these 15 years' experience,
We have developed CE approved PS Foam Sheet Extruder, Fully Automatic Vacuuming Forming Machine, Mechanical Hand Vacuum Forming Machine, Recycling Machine, Foam Cup Making Machine, Aluminium Foil Container Making Machine etc. Totally more than 15 kinds of machines which are widely used in the fields of fruits, food, hot drink & pharmaceutical packing etc..
During these years of development, we have got 3 patents based on our highly experienced in machinery manufacturing, technical improvement & after sales-services. With the market share expanding year after year, our machines have been exported to more than 32 countries until now.
With the support and recognition of our customers, we were successfully help them set up more than 65 lines in different countries and regions & enjoyed great reputation among our customers. Supporting of turn-key project (From A-Z, include Materials, Machines, Moulds etc.) and the extremely detailed After-sales Services are our advantages, we can do what others competitors cann't do, our excellent after-sales service could always guarantee regular technical support to our customers.

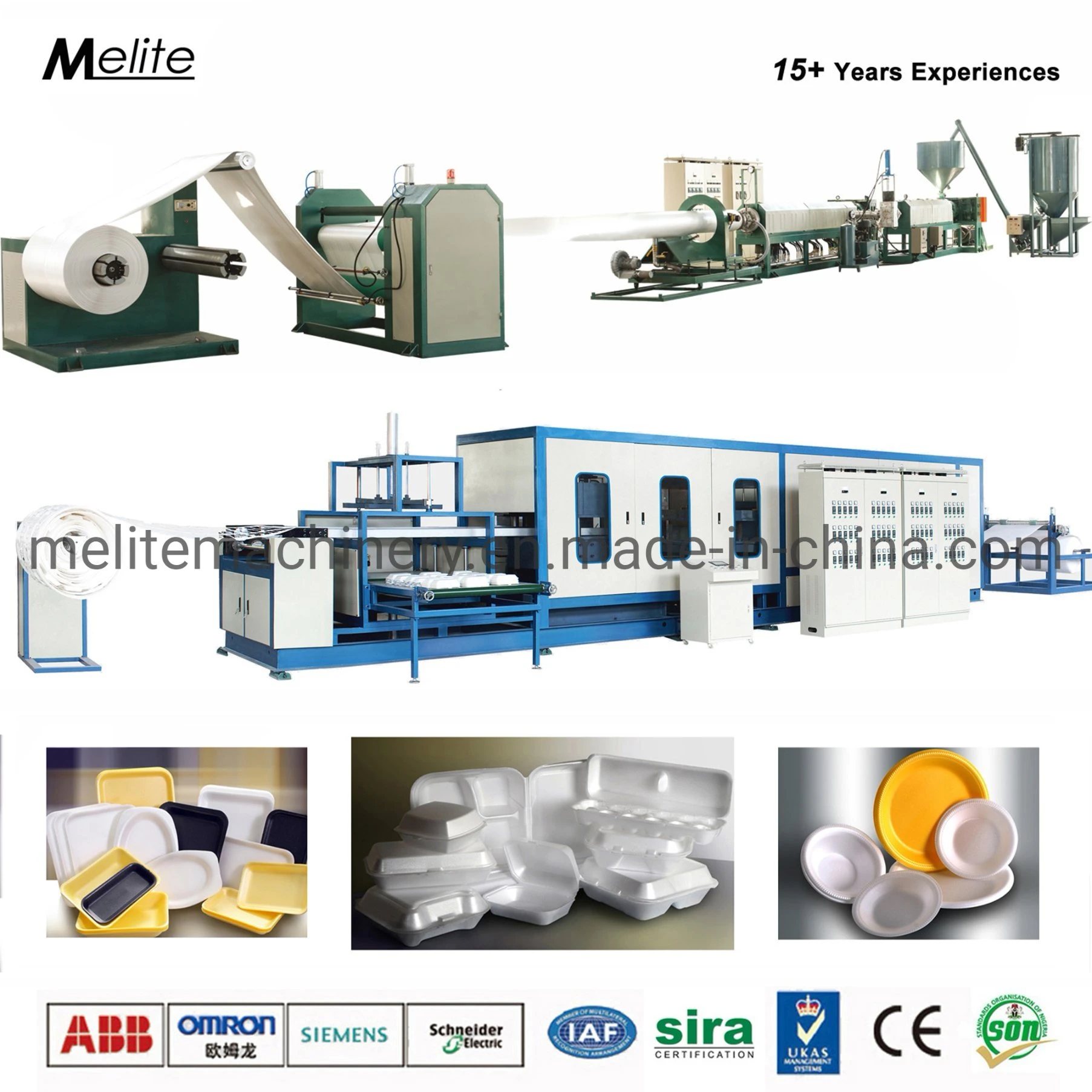

Automatic PS Foam Food Container Making Machine include 3 sets of Machines:
A. MT115/130 PS Foam Sheet Extruder
B. MTFA-1100x1250 Fully Automatic Vacuum Forming Machine with Robit Arm(New Design)
C. Recycling Machine Unit include Crusher
Work Flow
Fully Automatic Vacuum Forming and Cutting Off Integration Machine is an all-powerful thermoforming machine with integrating vacuum forming and cutting off at the same time, it can be used for processing all kinds of plastic sheet. This machine adopts computer digital forming system, PLC mechanical and electronic integration self-control and touch screen control working programme.it is easy to operate and has highly production ef1idency.lt has the features of dep6ndable stability large forming area. fast speed forming and highly automation. This machine can produce PS foam food container, foam tray. burger box, egg tray and so on.
PS Foam Sheet Extrusion Line
PS Foam Sheet Extruder uses a tandem screw technology to produce fine-block cell-structured extruded polystyrene foam sheet with high strength and a pearl and even surface, in a continuous oil, from polystyrene injection an eco-friendly blowing gas and additives. It has a user-friendly operating system with inverter-controlled driving, digital temperature control and so on, from this machine you can get the PS Foam sheet by rolls, the PS Foam Sheet can be used for food container, tray, plate and packing etc.
PS Foam Food Container Forming Machine
PS foam fast food box vacuum forming machine is an all-powerful thermal forming machine with integration od vacuum forming, press forming and synthetical forming. It can be used for processing many kinds of plastic sheet. The machine adopts digital system, fully automatic PLC mechanical and electronic integration control, touch screen to control the working program me. It is easy to operate and of high efficiency. It features reliable stability, large forming area, fast speed, highly automation and economic on manpower.
Recycling machine
Recycling machine can process PS/PE/PP material and it is mainly used to recycle the high foam polystyrene and high foam polystyrene products. It is the ideal equipment to recycle the waste materials. It features compact structure and easy operation.
Single Screw Granule Maker
Double Screws Granule Maker
Our Advantages
A. Machine advantage:
In order to assure the reliability of the equipment operation,the main electric components adopt:German Siemens frequency exchanger, Japanese Mitsubishi PLC, Japanese Omron servo motor, Japan RKC temperature control etc.
the operation of the equipment is more humanizing, handle easily and simple to operate. The frame structure of our machines are magnificent strong and adopts superior materials to ensure the stability of equipment operation.
The operation of the equipment is more humanizing, handle easily and simple to operate.Especially our Fully Automatic Vacuum forming machine,only need 2 workers,you can reach your goal.
As the professional Plastic machine manufacturer, we keep pace with time, and keep the technical research.
B. Services Advantage:
We are professional in providing TURN-KEY project, from raw material,formulation,machineries to finished products,until now we have many sucessful turn-key project all over the world,like Nigeria,Egpty,
Vietnamese,Pakistan,Mozambique and so on.
As a machine user,you will pay more attention to the after-sales services, in order to serve our customers,we provide 24 hours on-line after-sales services to save our customers' time.
Trouble Shooting
If the sheet has wave, how to solve the problem?
Please check the gas volume in, check the temperature, check the cooling water system.
Could be the LNG worked as foam agent instead of the butane gas.
Yes, but it's much be in liquid station, and the purity will be higher.
FAQs
For More information pls contact:
Hannah Cao
Sales Manager
Mobile:+86-15253509845
MELITE MACHINERY is Professional in producing Packing Machinery for more than 15 years.With these 15 years' experience,
We have developed CE approved PS Foam Sheet Extruder, Fully Automatic Vacuuming Forming Machine, Mechanical Hand Vacuum Forming Machine, Recycling Machine, Foam Cup Making Machine, Aluminium Foil Container Making Machine etc. Totally more than 15 kinds of machines which are widely used in the fields of fruits, food, hot drink & pharmaceutical packing etc..
During these years of development, we have got 3 patents based on our highly experienced in machinery manufacturing, technical improvement & after sales-services. With the market share expanding year after year, our machines have been exported to more than 32 countries until now.
With the support and recognition of our customers, we were successfully help them set up more than 65 lines in different countries and regions & enjoyed great reputation among our customers. Supporting of turn-key project (From A-Z, include Materials, Machines, Moulds etc.) and the extremely detailed After-sales Services are our advantages, we can do what others competitors cann't do, our excellent after-sales service could always guarantee regular technical support to our customers.
Automatic PS Foam Food Container Making Machine include 3 sets of Machines:
A. MT115/130 PS Foam Sheet Extruder
B. MTFA-1100x1250 Fully Automatic Vacuum Forming Machine with Robit Arm(New Design)
C. Recycling Machine Unit include Crusher
Work Flow
Fully Automatic Vacuum Forming and Cutting Off Integration Machine is an all-powerful thermoforming machine with integrating vacuum forming and cutting off at the same time, it can be used for processing all kinds of plastic sheet. This machine adopts computer digital forming system, PLC mechanical and electronic integration self-control and touch screen control working programme.it is easy to operate and has highly production ef1idency.lt has the features of dep6ndable stability large forming area. fast speed forming and highly automation. This machine can produce PS foam food container, foam tray. burger box, egg tray and so on.
PS Foam Sheet Extrusion Line
PS Foam Sheet Extruder uses a tandem screw technology to produce fine-block cell-structured extruded polystyrene foam sheet with high strength and a pearl and even surface, in a continuous oil, from polystyrene injection an eco-friendly blowing gas and additives. It has a user-friendly operating system with inverter-controlled driving, digital temperature control and so on, from this machine you can get the PS Foam sheet by rolls, the PS Foam Sheet can be used for food container, tray, plate and packing etc.
Components | MT75/90 | MT105/120 | MT-115/130 |
A. Mixer | |||
Hopper Capacity | 300-500kg/ hopper (controlled by time relay) | 300-500kg/ hopper (controlled by time relay) | 300-500kg/ hopper (controlled by time relay) |
Motor | 1 set, 4-pole, 3kw | 1 set, 4-pole, 3kw | 1 set, 4-pole, 3kw |
B. Automatic Feeding System | |||
Automatic Self-control System | |||
Motor | 1 set, 6-pole, 1.1kw | 1 set, 6-pole, 1.1kw | 1 set, 6-pole, 1.1kw |
C. NO.1 Extruder | |||
Screw Diameter | Φ75mm | Φ105mm | Φ115mm |
L/D | 30:1 | 30:1 | 33:1 |
Screw Material | 38CrMoAlA adopt Nitrogenous treatment | 38CrMoAlA adopt Nitrogenous treatment | 38CrMoAlA adopt Nitrogenous treatment |
Heating zones | 6 zones | 6 zones | 6 zones |
D. NO.2 extruder | |||
Screw Diameter. | Φ90mm | Φ120mm | Φ130mm |
L/D | 32:1 | 32:1 | 32:1 |
Material | 38CrMoAlA adopt Nitrogenous treatment | 38CrMoAlA adopt Nitrogenous treatment | 38CrMoAlA adopt Nitrogenous treatment |
Heating zones | 6 zones | 6 zones | 8 zones |
Pressure gauge | 1pc | 1pc | 1pc |
E. Cooling System | |||
Hollowness water circulation cooling | 1 set, as the dimensions by the customers | 1 set, as the dimensions by the customers | 1 set, as the dimensions by the customers |
F. Hauling-off System | |||
Rubber Roller | 3 pcs, (according customer's requirement) | 3 pcs, (according customer's requirement) | 3 pcs, (according customer's requirement) |
Traction Speed | 3-31m/min | 3-31m/min | 3-31m/min |
Motor | 1x 4-pole, 3 kw (controlled by frequency changer) | 1x 4-pole, 3 kw (controlled by frequency changer) | 1x 4-pole, 3kw (controlled by frequency changer) |
G. Winding Device | |||
Winding Pneumatic Shaft | 2 pcs (according customer's requirement) | 2 pcs (according customer's requirement) | 2 pcs (according customer's requirement) |
Torque motor | 2sets | 2sets | 2sets |
H. Die Material | |||
Installation Power | 200kw | 200kw | 245kw |
Central height | 1000mm | 1000mm | 1000mm |
I. Weight | 6 T | 8 T | 13.5T |
PS Foam Food Container Forming Machine
PS foam fast food box vacuum forming machine is an all-powerful thermal forming machine with integration od vacuum forming, press forming and synthetical forming. It can be used for processing many kinds of plastic sheet. The machine adopts digital system, fully automatic PLC mechanical and electronic integration control, touch screen to control the working program me. It is easy to operate and of high efficiency. It features reliable stability, large forming area, fast speed, highly automation and economic on manpower.
Parameter | Unit | MT-640*850 | MT-1100*1250 |
Forming area | mm | 640*850 | 1040*1250 |
Cutting of height | mm | 160 | 160 |
Production efficiency | s/die | 3-8 | 3-8 |
Installed dimension | m | 11*3.5*2.5 | 15*5*2.5 |
Installation power | kw | 100 | 180 |
Power supply | 3phase 380V 50Hz 3phase 220V 60Hz |
Recycling machine
Recycling machine can process PS/PE/PP material and it is mainly used to recycle the high foam polystyrene and high foam polystyrene products. It is the ideal equipment to recycle the waste materials. It features compact structure and easy operation.
Single Screw Granule Maker
Parameter | Unit | MT-150/120 |
Cutting off area | mm | φ150mm |
Cutting off height | mm | φ120mm |
Cutting speed | kw | 42kw |
Installed power | m | 6*3*1.5 |
Cool water pressure | T | 4-5T/24h |
Installation dimension | T | 2.5T |
Power supply | 3phase 380V 50Hz 3phase 220V 60Hz |
Double Screws Granule Maker
Parameter | Unit | MT-150/120 |
No.1 Extruder diameter | mm | φ150mm |
No.2 Extruder diameter | mm | φ120mm |
Installed power | kw | 42kw |
Installation dimension | m | 2x2x1.6 |
Capacity | T | 4-5T/24h |
Weight | T | 3T |
Power supply | 3 phase 380V 50Hz 3 phase 220V 60Hz |
Our Advantages
A. Machine advantage:
In order to assure the reliability of the equipment operation,the main electric components adopt:German Siemens frequency exchanger, Japanese Mitsubishi PLC, Japanese Omron servo motor, Japan RKC temperature control etc.
the operation of the equipment is more humanizing, handle easily and simple to operate. The frame structure of our machines are magnificent strong and adopts superior materials to ensure the stability of equipment operation.
The operation of the equipment is more humanizing, handle easily and simple to operate.Especially our Fully Automatic Vacuum forming machine,only need 2 workers,you can reach your goal.
As the professional Plastic machine manufacturer, we keep pace with time, and keep the technical research.
B. Services Advantage:
We are professional in providing TURN-KEY project, from raw material,formulation,machineries to finished products,until now we have many sucessful turn-key project all over the world,like Nigeria,Egpty,
Vietnamese,Pakistan,Mozambique and so on.
As a machine user,you will pay more attention to the after-sales services, in order to serve our customers,we provide 24 hours on-line after-sales services to save our customers' time.
Trouble Shooting
If the sheet has wave, how to solve the problem?
Please check the gas volume in, check the temperature, check the cooling water system.
Could be the LNG worked as foam agent instead of the butane gas.
Yes, but it's much be in liquid station, and the purity will be higher.
FAQs
- We are new in this field, how can we set up a factory?
Dear, don't worry, we did many turn-key project from 2008 until now, we have enough experience for helping you setting up a new factory, and we can provide the raw material (GPPS, HIPS, mast batch and so on), formulations, machines, and your factory design & layout, and we will arrange our engineers go to your factory for installation and training, you have Melite Team, take it easy, we are at your services all the time.
- When your engineers are in our factory, everything is going on well, after they leave our factory, our workers cannot operate the machines, what shall we do?
Firstly, we will let our 24 hours on-line services team to help you check which kind of problem you meet, if we cannot solve the problem online, we will arrange our engineer fly to your site to solve your problem ASAP, your problem is our problem, Melite and you are together like a family forever. - Do your company need agent overseas?
Yes, dear, you can contact us if you want to be. - Where is your factory located? How can I visit there?
Our factory is located in Yantai city, Shandong province, you can fly to Yantai or Qingdao airport, Yantai airport is nearer than Qingdao airport.When you confirm flight No. and time, please feel free to contact us, then we will pick up you on time.
- What should we prepare except material?
You should prepare workshop, water line, electric line, compress air. We can supply workshop layout drawing according to your workshop - Can you make machine upon our requirement?
It is no problem, we can make machine according to your requirement, such as part brand, machine color, labels, moulds, etc. - How to choose model?
Tell me your requirement (box size and capacity), we will help you to choose one accordingly.
- How many countries have your machine been installed?
In Africa, we have machines work in Egypt, Nigeria, The Republic of South Africa, Benin, and Mozambique and so on. With our customers support, we were successfully set up more than 60 lines all over the world.
- How do you after-sale service word if the product got damaged?
In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customers, but if the damage can be repaired by slight cost, we would wait for the customer's bill for the fix cost and refund this part of cost.(note: vulnerable part do not include)
- Will you Test machine before placing order?
We will make the machine running during your visiting to check the working condition. And there is some client who bought our machine in our city, We will take you to their factory to check all working flow.
- Will you conduct training for our staff here?
Yes, we will arrange our professional engineers to install and test machine and train the buyer's engineers.
- Machine adjustment and installation
We can send technicians go to customers' country for machine adjustment and installation.
- Guarantee time and after-sale
One year guarantee time, after one year, we have professional after-sales department providing best service if any problems - How can you send the equipments to my country?
We can arrange shipment to the destination port for you, as we have cooperated with experienced forwarding agents. We can quote you competitive freight cost.
